| Let
It Flow...With Moroso Dry Sump Oil Pumps |

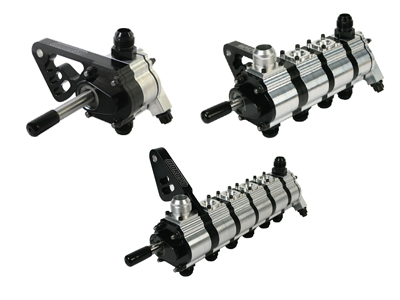

These
new aluminum dry sump pumps from Moroso have
been developed with their decades of oiling system expertise
to give you a lighter, better performing oil pump that will
save weight and make more crankcase vacuum.
The
pumps feature tri-lobe aluminum scavenge sections with individual
timing gears to ensure proper clearance at the highest RPMs,
spur gear pressure section based off Moroso’s successful
billet wet sump pump design, variable spring rates optimize
your oil pressure for smooth, reliable oil pressure readings,
multiple #16 scavange outlet options for increased flow
back to your tank and/or fitment requirement on your application.
Pump
weighs almost half of gerotor pumps, and takes up to 40%
less power to drive. Custom pressure section sizes for increased
efficiency with different pump speeds. Door car and dragster
brackets available, includes all necessary fittings.
For
more information visit www.moroso.com/catalog/categorybrowse.asp?catcode=14300.
|

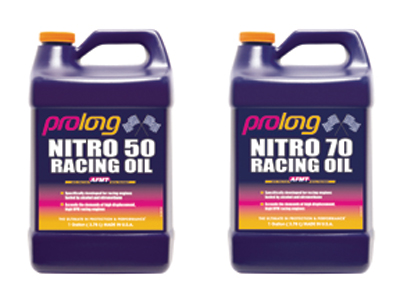

| Nitro
Racing Oil |
Prolong®
Super Lubricants introduces Nitro Racing
Oil - new 70W and 50W drag race oil designed to deliver
extra protection and performance in alcohol- or nitromethane-fueled
race engines.
Nitro Racing Oil features a blend of premium synthetic base
oils and additives and is formulated with Prolong's advanced
Anti-Friction Metal Treatment™(AFMT) technology to protect
against high temperature oxidation, wear and viscosity breakdown
during severe use. Specifically formulated to meet the demands
of high-displacement, high-RPM engines in today's domestic
and foreign race circuits, Prolong Nitro Racing Oil boasts
effective detergent dispersants and corrosion inhibitors to
keep engine parts clean and free of sludge, varnish and rust.
"Our goal in developing this new race oil was to exceed
the requirements for lubricants used in drag racing, making
it another high-quality addition to our expanding line of
super lubricants," said Jeff Victer, Director of Sales
- Global, Prolong Super Lubricants. Nitro
Racing Oil is available in 1-gallon, 5-gallon and 55-gallon
drum sizes. For more information, visit www.prolong.com.
|
| Hoffman
Nose Dragsters, Gives Them a Lift |
|

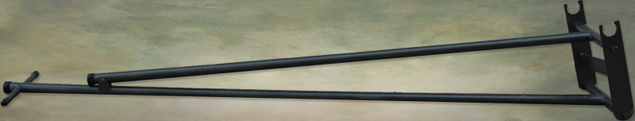

Hoffman
Performance Products is now offering The
Dragster Quick Lift. Designed for easy and safe
use, eliminate using a floor jack to put your dragster on
jack stands (many times where we are pitted is not on level
ground). Our Quick Lift allows you to safely and quickly
slide under the rear cross member of your dragster giving
you the clearance you need for warming up your dragster
and performing quick repairs. The Quick Lift is collapsible
for efficient storage. Powder coated in black and will soon
offer powder coating in different colors. This is built
to last.
Also
from HPP is this holder for your dragster
nose. Where do you put the nose of your dragster (under
your work bench, on the floor)? You can mount the Nose
Cone Holder on the wall of your trailer, keeping
safely out of harms way, rubber straps keep the nose secure
and prevents it from falling and or getting scratched.
Visit
Hoffman Performance Products at www.HoffPro.com
for more information. |
| Moroso’s
Alternator Shutdown Relay Kit |
Moroso’s
new Alternator Shutdown Relay Kit
is designed to stop engine run-on when electrical master disconnect
is turned off by stopping electrical feedback in malfunctioning
or high amperage alternators. More and more racing sanctioning
bodies are recommending that this type of device be used;
it compliments battery disconnect switches such as Moroso
Nos. 74100, 74101, 74102 and 74106 Kit
includes; Heavy Duty Solenoid rated at 250 Amps, mounting
hardware, wiring harness and terminals. Order part #74107,
Alternator Shutdown Relay Kit.
For
more information about Moroso, visit www.moroso.com. |

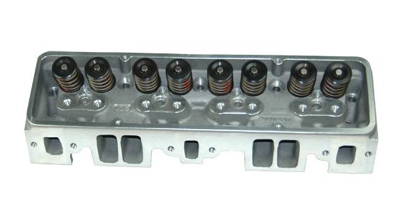

| Hit
a Bullseye With Dart’s New SHP Head |
The
new SHP head from Dart Machinery
is a high quality aluminum casting, 100% made in the USA from
A356-T6 alloy. It has been designed to work with most off-the-shelf
components, saving you the headache of having to replace valuable
components you already have. Precision cast intake ports and
combustion chambers translate to excellent power without costly
CNC porting. Features: A356-T6 aluminum alloy; bolt-on compatibility.
Standard valve angle and spacing are retained to allow use
of off the shelf pistons and valve train components; multi-angle
intake seats and radiused exhaust seats dramatically increase
air/fuel flow; hardened exhaust seats are compatible with
unleaded gasoline; manganese bronze valve guides extend cylinder
head life; machined for 1.250 or 1.437 diameter valve springs;
straight spark plug configuration. Heads sold individually;
a pair of fully assembled heads are less than $1,050.00 retail.
For
more information visit www.dartheads.com. |

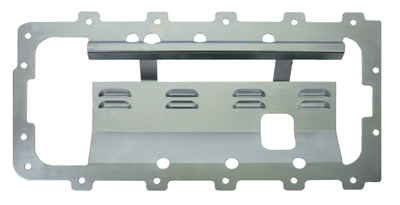

| Keep
From Getting Winded With Moroso Windage Tray For Ford |
Moroso
Performance Products has released this new windage
tray for Ford 4.6 and 5.4 engines. It fits both stock* and
aftermarket oil pans (*on some Mustang Cobra applications,
diverters in factory oil pan and oil pump pickup need to
be trimmed). The louvered design allows oil thrown from
the rotating assembly to drain into the sump without splashing
back, reducing the windage and increasing power. Features
dual cylinder bank drain back for superior oil control and
horsepower gain. The tray goes between the engine block
and oil pan, is constructed out of 14 gauge steel with a
clear zinc finish and Includes oil pan studs and nuts. Order
Part #22933, Ford 4.6/5.4 Louvered Windage
Tray.
For
more information about Moroso, visit www.moroso.com. |
| Oil’s
Well With Moroso Performance Products |
Moroso
Performance Products has announced oil pans for
the following applications:
Part
# 20174 Small Block Chevrolet Oil Pan, fits 1980-'85
with passenger-side dipstick, two-piece seal and Dart SHP
engine blocks. Features 7-1/2" deep stock configuration
sump, 5 quart capacity, clears 4.125" stroke with most
steel rods, fits 4 bolt Dart and GM main caps, trap door
baffle for improved oil control, compatible with most starter/flywheel
combinations, steel with a clear zinc finish.
Part
# 20570 for Ford 5.0 “Coyote” engine blocks,
designed for Cobra replicas that require a shallow rear
sump oil pan. Features fully fabricated steel with a clear
zinc finish, a thick steel rail with a 4-1/2" deep,
10-3/4" long by 14-1/2" wide rear sump. Designed
to be used with the 5.0 “Coyote” factory windage
tray and dipstick. Features a race-proven, four trap door
assembly and anti-slosh baffle that keeps oil contained
in oil pump pickup area during road racing and drag racing.
Extra capacity; holds 1.5 more quarts that the Mustang O.E.M.
oil pan. 1/2" NPT fitting for supercharger drain back,
1/2" NPT fitting for oil temperature sender, 20 mm
fitting for the factory oil level sensor*
Part
# 20571 (fabricated steel w/clear zinc finish) and #20572
(fabricated aluminum) for Ford 5.0 Modular “Coyote”
engines, designed for Mustang 2011-Up; Mustang
1979-'10 with Ford “Coyote” Engines, and other
Ford Rear Sump applications. Fabricated steel with a clear
zinc finish, oil pan has a thick steel rail with a 2-3/8"
deep front section and a 6-5/8" deep by 9-1/8"
long rear sump. Designed to be used with the 5.0
"Coyote" factory windage tray, oil pump pickup
and dipstick. Features a race-proven, trap door assembly
and anti-slosh baffle that keeps oil contained in oil pump
pickup area during road racing and drag racing. Extra capacity;
holds 2 more quarts than stock. 1/2" NPT fitting for
supercharger drain back, 1/2" NPT fitting for oil temperature
sender, 20mm fitting for the factory oil level sensor (if
the factory low oil warning sensor is not going to be used,
Part No. 22738, 20mm Plug with copper washer is available).
Part
# 21811 and Part # 21812 Chevrolet small-block
for C-3 & C-4 Corvettes, kit cars and other low ground
clearance applications. Clears 4.125" stroke with most
steel rods. Fits 4 bolt Dart, GM and Merlin main caps. 5
trap door baffles for oil control in road racing, also an
excellent drag race oil pan. Has a built-in crank scraper,
removable louvered windage tray for horsepower. Rear sump
is 7" deep, 13-3/4" wide and 12" long. Includes
20mm fitting for oil level sensor, optional 20mm plug No.
22738 available for use when the factory low warning sensor
is not going to be utilized. Use stock dipstick; also has
a 1/4" NPT fitting for Moroso Universal Dipsticks No.
25970, 25971 & 25973. Steel with a clear zinc finish;
compatible with most starter/flywheel combinations.
For
more information about these Moroso items, visit www.moroso.com. |
| Get
More For LS With RHS |
|

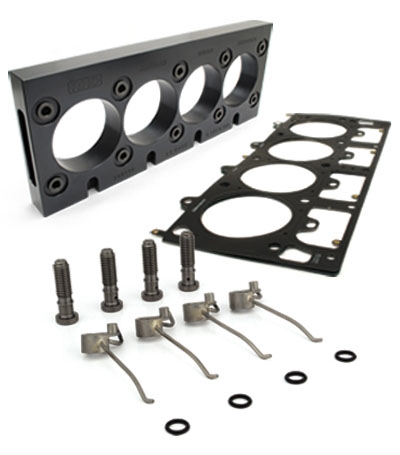

RHS'
LS Race Block Torque Plates for boring/honing are
carefully engineered to precisely mimic the thickness and
design of an installed aluminum cylinder head. Precision
MLS (Multi-Layer Steel) Head Gaskets are custom
made for LS Race Blocks and are comprised of three layers
of hard embossed stainless steel, with a high temperature
FKM rubber coating and a stainless steel shim layer that
features a laser welded stopper layer for the ultimate in
sealing.
Racing
Head Service® Piston Oilers bolt to the underside
of the LS Race Block and squirt oil on the underside of
the pistons, keeping them lubricated and cool during extreme
race use.
For
more information visit RHS online at www.racingheadservice.com.
|
| Aeromotive
Fuels New Camaro Owners |

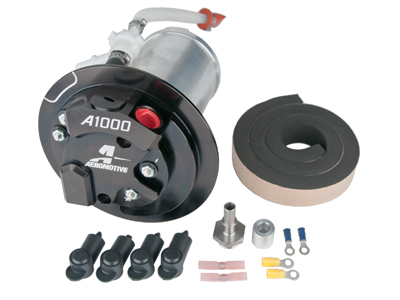

Aeromotive's
new Camaro System is a complete drop-in, single
fuel pump assembly for 2010 and later Camaros. The system
provides a single A1000 or Eliminator Fuel Pump capable
of supporting big HP. The best part, it drops right into
your factory tank. It still incorporates the factory jet
siphon system, includes an integral 100-micron pre-pump
filter and an ORB-08 return line port. Now you can plumb
a true return-style system into your Camaro to support the
power your making without the worry of the siphon system
and while maintaining your factory fuel tank.
PRODUCT
FEATURES:
• Fits 2010 (5th gen) and later Camaros
• ORB-08 outlet and return port
• Incorporates factory jet siphon system and sending
unit
• Includes an integrated 100-Micron Stainless Steel
pre-pump filter
• Utilizes the factory tank, o-ring, lock ring and
mounting location
• Includes everything necessary to install the pump
into your tank.
– Remaining system plumbing not included. Stage 1,
2 and 3 Systems COMING SOON!
18673
- A1000 Camaro Stealth Kit (MSRP = $799.00); supports
up to 1300 HP – naturally aspirated, supports up to
1000 HP – forced air induction. 18674 - Eliminator
Camaro Stealth Kit (MSRP = $979.00); supports up
to 1900 HP – naturally aspirated, supports
up to 1400 HP – forced air induction.
Aeromotive
Inc. is a true high performance aftermarket manufacturer
specializing in fuel delivery and fuel delivery components.
Visit Aeromotive online at www.aeromotiveinc.com. |
| Wood
You Like Your Car in 3D? |
While
we were at the NHRA Division 1 Bracket Finals, our friends
Steve and Arlene Russell gave me these
very cool gifts for my birthday. I'd never seen anything
like them and was so impressed with the workmanship that
I wanted to write a little something about
them here.
What
you're seeing are photos of the Dodge that a craftsman named
Bob Smith has either carefully trimmed
and set onto wood (as in the wooden frame or the large cut-out)
or has created a 3-D effect postcard (with the black border).
The item in the wooden frame is unreal, the way the car
literally jumps off the background. The photo that I took
of them does not do them any justice.
I believe
he can do this with any photo; what a great gift idea for
the holidays. For more information email magnetmanphoto@yahoo.com. |
| New
Mickey Thompson ET Front Tires |
Mickey
Thompson Performance Tires & Wheels' popular
ET Front drag tire is being reintroduced
with a new design and related product number 30061. The ET
Front has traditionally been the tire of choice for
drag racers when paired with the ET Drag tire. The tubeless
ET Front is lighter, faster and narrower and offers more sizes
to choose from. “We
are always working collaboratively with our racers and our
research and development team to continually improve our
product line,” stated Carl Robinson,
Motorsports Manager, Mickey Thompson Performance Tires &
Wheels. “The new ET Front tire is just another example
of our dedication to excellence.”
Effective
immediately, the former ET Front product number 3006 will
be replaced by the new product number 30061. Please make
a note of this change when requesting information or ordering
the new ET Front.
For
more information, visit www.mickeythompsontires.com/strip.php?item=ETFront.
|
| Lingenfelter
Performance 2010-2011 Camaro SS 9.5" Differential Assembly |
Lingenfelter
Performance Engineering (LPE) announces a complete
2010-2011 Camaro SS aluminum 9.5" differential assembly
kit is now available for drag, street and road race applications.
Available
in several different ring and pinion ratios, the Lingenfelter
cast aluminum differential assembly comes with street/drag
race bias tuning or no pre-load that is suitable for road
racing.
The
kit includes an American Axle TracRite(r) GT Helical Gear
Limited Slip Carrier Assembly, which features a tunable
bias ratio and a torque-sensitive design that instantly
biases torque before differentiation begins. Boasting smooth,
quiet operation, the product can be used with or without
a pre-load feature. An American Axle ring and pinion is
also included. In addition, Lingenfelter offers heavy-duty
driveshafts and half-shaft assemblies to complete the differential
installation.
For additional parts and accessory information, or to order
product for your Camaro SS, visit www.lingenfelter.com
and click on "Camaro Parts" in the toolbar.
|
| GM
Performance Parts Completes You |
|
GM
Performance Parts’ (GMPP) new LSX454 Completion
Kit (part number 19244481) is the solution for
builders looking to get their LSX454 crate engine running
with production-style fuel injection, with a GMPP-engineered
custom calibration designed specifically for this application.
It is on sale now, carrying an MSRP of $1,197.44.
The
LSX454 Completion Kit includes an LS7 intake manifold –
pre-assembled with the fuel rail, injectors and throttle
body – a calibrated engine controller, wiring harness
and throttle pedal assembly for the electronically controlled
throttle. |
With
the kit’s LS7 intake manifold, the LSX454 crate engine
(part number 19244611) is rated at 580 horsepower at 6,200
rpm and 590 lb.-ft. of torque at 4,800 rpm. The manifold matches
perfectly with the intake ports of the LSX454’s six-bolt
cylinder heads, which are based on production 7.0L LS7 heads.
It was originally designed for the high-rpm performance of
the Chevrolet Corvette Z06 and is matched with a 90mm-diameter
throttle body – the largest production throttle body
from GM – that offers great airflow for the larger-displacement,
7.4L crate engine. See
complete details at gmperformanceparts.com.
|
| Get
A Lift With COMP Cams |
As
valve train technology continues to advance, engine builders
are constantly coming up with ways to make engine speeds faster.
COMP Cams® Short Travel Hydraulic Roller Lifters
minimize piston movement in the lifter and allow higher engine
RPM. The
result is an increase in horsepower, made possible by lifters
designed for optimum performance at higher engine speeds.
For
more information, visit www.compcams.com. |

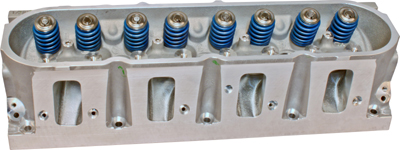

| GM
Performance Parts LS3 Cylinder Heads |
GM
Performance Parts (GMPP) has released a high-flow,
CNC-ported version of the LS3 cylinder head. It flows more
than 350 cfm at 0.600-inch lift (intake side) at 28 inches
of water restriction – or nearly 10 percent more than
the stock casting – to promote greater power across
the rpm band and maximize the advantage of additional performance
parts, such as a larger camshaft and high-flow intake manifold.
CNC
porting is a precision machining process that enlarges and
optimizes the shape of the intake and exhaust ports to enhance
airflow. And while a horsepower increase can be realized
by installing only the heads, they are more effective when
matched with complementing camshaft, valvetrain, intake
and exhaust components.
“This
new cylinder head is a great choice for builders looking
to get the most out of a simple, bolt-on cam-and-heads swap
on their new Camaro SS or Corvette,” said Dr. Jamie
Meyer, product integration manager for GM Performance Parts.
“It also complements a bolt-on supercharger by maximizing
the airflow, particularly at higher rpm.”
The
new head carries part number 88958758 and an MSRP of $700.
It is available now through GMPP dealers and retailers,
including through the GM Performance Parts website at www.gmperformanceparts.com. |
| Socket
To Me With Hoffman Performance Products |
Hoffman
Performance Products has introduced Easy
View spark plug indexing socket by Fast Metal Racing.
These sockets allow you to view the indexing mark on your
spark plug to ensure it is installed with the electrode
in the proper location for maximum power. These can be used
on any vehicle that also has minimal room to get the socket
off of the plug.
Indexing
spark plugs ensures even and proper combustion across the
piston's top utilizing the entire area of the piston's surface.
You can also keep the piston's dome from closing the spark
plug's ground strap and possibly the spark plug's gap.
Hoffman
Performance offers them in 13/16" & 5/8”,
both for a 3/8" drive. Ratchets and indexing washers
are not included. Free shipping in the lower 48 states.
Contact Hoffman Performance for international shipping.
Visit www.HoffPro.com.
|

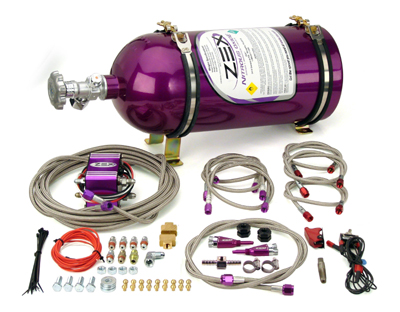

| ZEX:
More Horsepower For Your Horse |
ZEX™
nitrous systems for electronic fuel-injected 1987 –
2011 Ford Mustangs combine quick and easy installation with
optimized performance. These kits offer Mustang owners a
cost-effective nitrous system. With a fully adjustable boost
from 55-250 additional horsepower (varies with kit), these
nitrous systems are perfect for stock and modified Mustangs.
The user-friendly kits also feature a patented TPS switch
that activates the nitrous shot at wide open throttle and
Active Fuel Control™ technology that adjusts fuel
enrichment with changes in bottle pressure for a safe, reliable
and efficient boost right when you need it. Every kit is
specifically engineered for the unique requirements of each
generation of fuel injected Mustang. Every kit includes
a custom designed fuel rail adapter, nitrous management
unit, solenoids, precision-machined jets, custom length
hoses, TPS switch and everything required for complete installation.
For
more informationt visit www.zex.com.
|
| New
Microfiber Towels By Hoffman Performance Products |
Hoffman
Performance Products is now offering their own line
of Microfiber Towels available in Ultra Plush and Plush. Designed
with a 100% microfiber edging, these are among the thickest
microfiber towels on the market. Engineered using Thick Loop
Technology and over 410,000 premium fibers per square inch
they're also some of the heaviest, weighing in at an incredible
550+ g/m2 with silk-banded scratch free edges. Many
of the towels in local and big name discount stores are
the cheapest grade towel that they can find. Many racers
have extremely expensive paint jobs and shouldn’t
cut corners on the towels they’ll use to keep their
paintjob clean. This towel will absorb 16 oz. of water,
it is also dual sided. Long pile microfiber on one side
and short pile microfiber on the other side. Eliminates
swirls in your paint, excellent for buffing and polishing.
These towels can be washed over 1,000 times compared to
cheap throw-away towels.
Ultra
Plush 550 GPSM towels are blue with black silk
piping and come in 16”x16” and 16”x24”.
Plush 450 GPSM towels are yellow with black
silk piping and come in 16”x16”, 16”x24”
and 25”x36”.
Dealer
inquiries are invited and Hoffman Performance Products
does offer these towels in wholesale bulk. Email them for
prices and quanities. Visit www.HoffPro.com.
|
| Just
For The H of It: Callies New H-Beam Rods |
| With
years of connecting rod design and machining experience, Callies
has introduced the affordable (High Value) Ultra H-beam.
Ultra H-beams are machined from extremely clean Timken steel,
from start to finish in their Ohio facility. Current offerings
include popular SBC, LSx and BBC applications. These rods
are fastened with purpose built 260Ksi Ultra bolts, produced
by ARP specifically for Callies. Design, material and craftsmanship
combined to make the rod capable of handling up to 1200hp.
|
 |
| The
Ultra H-beam is designed not only to be affordable,
but also provide racers with many years of service and durability.
For more information visit www.callies.com. |
| Go
With The Flow With Hoffman Performance Products |
Last
month Hoffman Performance Products of Houston,
TX introduced the UNI FRS-960 Racing Filter for Dominator
carburetors. This month they bring you the FRS-950
UNI Racing Filter that fits all 4150 Series
carburetors.
The
FRS-950 was designed to not only protect the engine but
also enhance air flow into it. Typically racers can pick
up 1 mph in the 1/8th mile and 2 to 3 mph in the quarter
mile and get maximum air filtration to protect their engines.
Through extensive research and development, UNI found that
by installing the honeycomb grill it affectively enhances
the volume of air and increased air speed through the filter.
All
UNI Products are manufactured and assembled in the USA.
The dimensions of the FRS-950 are 16” long x 10 ½”
wide x 4 ½” tall. The opening for the carb
is 5 7/8” and fits the 4150 series carburetor. Hoffman
Performance Products offers free shipping on all UNI Filters
(a saving of $16.00). As a bonus each UNI FRS-950 air filter
comes with 4 oz aerosol spray oil that is specially designed
by UNI at no charge to oil the filter. UNI also offers a
dirt filter cover that goes over the FRS-950 which is Part
# FRS-971. Instructions are included on how to maintain
a UNI Filter for maximum performance.
Visit
www.HoffPro.com
for more information. Please note that free shipping is
for lower 48 States. International orders please contact
Hoffman Performance Products for shipping costs.
|

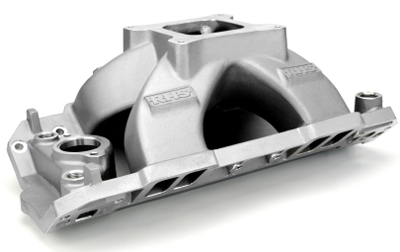

| RHS®
14 Single Plane Intake Manifold |
The
new RHS® 14-Degree Single Plane Intake Manifold
is engineered specifically to fit RHS® 14-degree cylinder
heads with a 5-degree intake face. With a tall profile and
long runner design, the new manifold provides the power and
strong torque curve throughout the mid RPM range that is required
for circle track and drag race applications up to 400c.i.
This manifold offers the simplicity of a one-piece design
with integral water crossover and a lightweight flange for
weight critical applications. Female pipe fittings at all
four corners allow external water lines for reverse cooling
applications. And, with a 4150 flange the RHS® 14-Degree
Single Plane Intake Manifold is easy to install in most popular
Small Block Chevy applications. Visit their website at www.racingheadservice.com.
|
| Hoffman
Performance Products Brings Up The Rear |

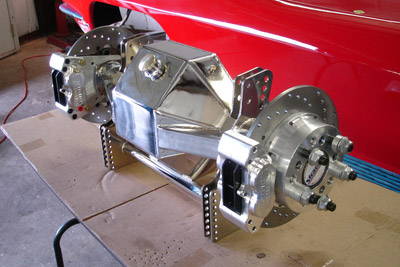

Hoffman
Performance Products introduces their new Custom
9” Fabricated Housing. Built on custom fixtures
to assure perfect alignment, it features mild-steel construction,
4130 chromemoly 4-link hole stiffener plates, back brace,
3-1/4“ axle tubes with 1/4” wall, 4-link brackets
w/ 0.500 holes, symmetrical Strange housing ends, drilled
and tapped housing face w/ studs, anti-roll mount holes, oil
drain bung & plug, oil fill bung & plug, vent, 26”
flange-to-flange, chrome plated. $2,100
FOB. Custom widths are available; add $200.00. Dealer Inquiries
are welcome.
Visit
www.HoffPro.com
for more information. |
| Make
The Connection With Lunati |

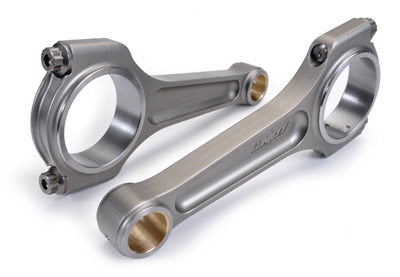

Lunati
has introduced their all-new 4340 alloy steel Signature
series connecting rods. As direct replacements for their FM
(fully machined) series, these new race-ready I-beam forgings
are 100-percent sonic tested and Magnaflux inspected. In addition,
they are manufactured to extremely close tolerances (.0005in
between centers), weight-matched to plus-or-minus 1 gram,
and heat treated to 28-30 on the Rockwell C scale. They are
made to the most precise standards Lunati knows and are available
in sizes from 5.4in to 6.4in.
These precision-machined, aircraft-quality mill-certified
connecting rods are ideal for use in circle track, drag racing,
off road or marine applications. They suit all naturally aspirated
and forced-induction engines that are subjected to high engine
speeds and stresses. For 2.100in and 2.000in crankpins the
Signature series connecting rods are supplied with 7/16in
bolts; for smaller 1.889in crankpins (Honda journal) 3/8in
bolts are provided. All bolts are of the ARP2000 series. For
more information visit www.LunatiPower.com. |

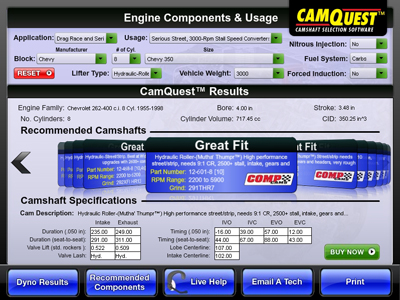

| CamQuest™
Cam Selection Software Evolves |
CamQuest™,
the camshaft selection software from COMP Cams®,
has been redesigned to provide real-time web browser usage
(no download required), an improved user interface and even
greater accuracy. The new COMP Cams® CamQuest™
allows both PC and Mac users to select the perfect camshaft
by answering just ten application-specific questions with
the program’s simple drop-down menus. The easy-to-use,
online program (no download required) then suggests the
top matching camshafts based on your application and performance
desires. A built-in virtual dyno will even calculate your
engine’s estimated horsepower and torque. CamQuest™
also lists matching COMP Cams® valve train components,
such as lifters and valve springs. Once you have found the
perfect cam, the program integrates seamlessly with the
COMP Cams® online store so you can order your new camshaft
and everything needed for installation with just a few mouse
clicks. If you need help, CamQuest™ also connects
directly to COMP Cams® technical support representatives
with Live Help and email options. A print feature also displays
all information, including cam specs and virtual dyno results,
for your records.
Visi
tthe COMP Cams® website at www.compcams.com. |

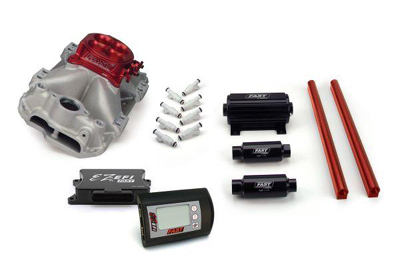

| EZ-EFI®
Electronic Fuel Injection Kits |
FAST™
now offers bolt-on EZ-EFI® kits to
install multi-port EFI in for SBC, BBC and SBF engines.
Engineers at FAST™ have developed complete bolt-on
EZ-EFI® Electronic Fuel Injection Kits that allow anyone
to install a multi-port injection setup with the best selling
FAST™ EZ-EFI® on Small and Big Block Chevy and
Small Block Ford engines that were originally carbureted.
These kits can be used on anything from mild street rods
and muscle cars to 1,000 horsepower all-out race cars. Simply
install the system and answer the basic Setup Wizard questions
on the included hand-held display; the system then tunes
itself as you drive. EZ-EFI® Electronic Fuel Injection
Kits include carefully matched components, including the
EZ-EFI® multi-port kit, single plane EFI intake manifold,
throttle body, proper size Precision-Flow™ Fuel Injectors,
aluminum fuel rails, fuel pump kit, all necessary sensors
and wiring harnesses with labeled connectors.
For
more information, visit online at www.fuelairspark.com. |
| Spring
Into Action With Moroso Front Coil Springs |
Moroso's
Front Drag Race Coil Springs for 1993 - 2002 Chevrolet
Camaro or Pontiac Firebird with LTI/LT4 and LS engine are
designed for drag racing where maximum weight transfer is
needed. Trick Front Springs are tall, small wire diameter
coil springs that hold a great amount of stored energy for
instant weight transfer. Replaces stock OEM springs with
no modifications required. For cars with a front end weight
of 1500-1700 lbs., as raced with driver. Coil spring is
275 lb. rate. Sold two per package. For more information
visit www.moroso.com.
|

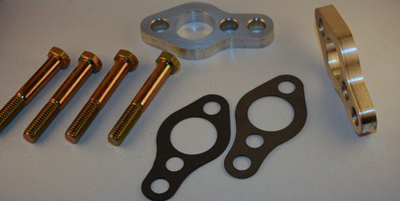

| Get
Spaced Out With Hoffman Performance Products Water Pump Spacers |
Hoffman
Performance Products introduces their Billet
Water Pump Spacers for small- & big-block Chevrolet
engines. Hoffman Performance Products’ Billet
Water Pump Spacers are manufactured here in the
USA and are made out of 6061 T6 Billet Aluminum. All holes
are chamfered, edges are smooth, machined on a 3 axis CNC
Mill. Hoffman Performance Products offers these in the following
sizes: 1/8”, 1/4”, 3/8”, and 1/2”
All
Hoffman Performance Products water pump
spacers come with gaskets and Grade 8 bolts; Hoffman
Performance Products is one of very few companies
that include bolts and gaskets with Billet Water Pump Spacers.
Dealer Inquiries are welcome. For more information visit
www.hoffpro.com. |

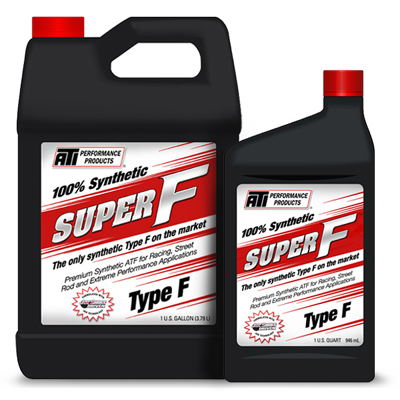

ATI
Super F™ Transmission Fluid Available Now |
ATI
Performance Products new 100% synthetic Type F
fluid Super F is now available, and for
a limited time ATI is offering an introductory special
of $99.00 + shipping on a case of 12-quarts.
The
Super F fluid was tested for over a year
in the ATI Drag Pak Challenger, netting
a solid .02 faster than when raced back to back against
a popular non-synthetic Type F. The Super F fluid was also
run for the full 2010 race season in Chris Rini's
Pro Street Stratus, helping him take the NMCA championship
with record passes of 6.15 and 234 mph. For good measure
ATI also had Dave Hance abuse the product
in his record setting Drag Radial car as well as his ADRL
Pro Mod.
Super
F is available in four different sizes: quart bottle (#100001);
case of 12 bottles (#100001-12); gallon (#100004); case
of 4 gallons (#100004-4).
For
more info visit
ATI's Super F webpage HERE. |

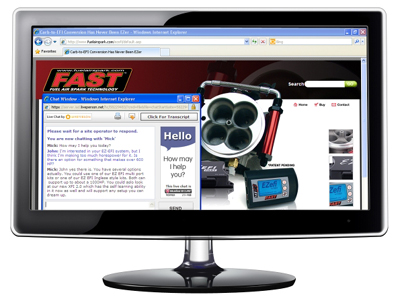

| Fast
Help With FAST™ Live Chat Online Tech Support |
FAST™,
the electronic fuel injection company, has introduced a new
Live Chat instant messaging program accessible on www.fuelairspark.com.
This new service connects customers to real technicians through
a pop-up chat window on the FAST™ webpage. If a customer
is looking at product specs or instructions online and has
a question, the real-time answer is now just a few mouse clicks
away. Your chat conversation can also be saved, emailed or
printed. Live Chat allows anyone to instantly receive answers
without having to make an additional phone call or wait for
an email response. FAST™ Live Chat is available Monday
- Friday, 8:00 a.m. to 5:00 p.m. CST. |

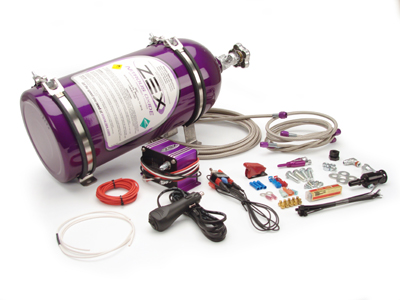

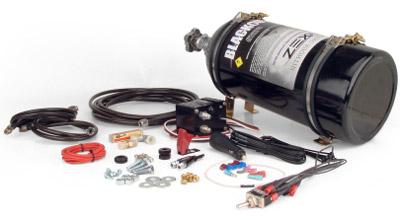

| ZEX
Dodge Hemi Challenger Nitrous System |
Engineered
for a simple plug-and-play installation into the 2008-current
Hemi Challenger, this ZEX system includes
a custom designed fuel line adapter and brackets. This kit
uses an advanced safety technology called Active Fuel Control™
as well as an electronic TPS switch. The system’s
technology monitors the nitrous bottle pressure and adjusts
the kit’s fuel enrichment to never run too rich or
too lean. Safely adds 75-125 fully adjustable HP. For
more informationt visit www.zex.com. |
 |

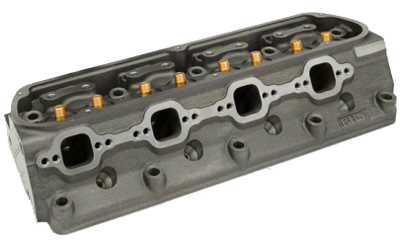

| Pro
Elite™ Heads for SBF from RHS |
| Designed
with the small block Ford racing enthusiast in mind, RHS
Pro Elite heads feature the benefits of professional
CNC porting straight from the factory. The CNC porting is
done off of a known port which provides more airflow consistency
than hand-ported runners. In addition to the CNC-ported intake
and exhaust runners, the combustion chambers are also CNC-ported
to moderate valve shrouding and maximize airflow efficiency.
Prior to porting, the heads are given a multi-angle valve
job for up to 5% more airflow. |
 |
| Designed
for Ford 289, 302 & 351 Windsor drag and circle track
racing applications. CNC-ported 205cc / 221cc intake &
79cc exhaust runners. Unique multi-angle intake & radiused
exhaust valve seats for increased airflow volume horsepower
potential. CNC-ported 62cc combustion chamber moderates valve
shrouding. Thick deck surface allows angle milling for compression
& increases rigidity; improves head gasket retention.
For
more information, visit Racing Head Service
online at www.racingheadservice.com.
|
| Dynotech
Gives Fords The Shaft |
Dynotech
Engineering’s new custom replacement Ford Mustang
driveshaft is a lightweight, one-piece replacement shaft for
the OEM production two-piece driveshaft and is up to 55 percent
lighter than stock. Available in steel or aluminum, the driveshaft
is offered for 2005-2011 model years Mustangs with fitments
for the GT or GT 500 application. Dynotech can also build
custom driveshafts for all pre-2005 model year Mustangs.
The
custom Dynotech Mustang Driveshaft comes in two construction
designs: drawnover mandrel (DOM) steel or 6061 aluminum. The
DOM steel model has a 3.5-inch diameter, 0.083-inch wall thickness
and, at 13 lbs. lighter than stock, is perfect for street
and some drag applications. Dynotech's 6061 aluminum Mustang
Driveshaft is available as standard with a 3.5-inch diameter
and 0.125-inch wall thickness, or heavy-duty with a 4.0-inch
diameter and 0.125-inch wall thickness. Ideally suited for
street, drag and road racing use, the aluminum model weighs
21 lbs. less than stock.
Dynotech's
aluminum Mustang driveshaft is used in the Ford Racing "Cobra
Jet" drag cars. Both the steel and aluminum models include
computer welding, high-speed balancing, CV adapter, mounting
bolts and free shipping within the continental U.S. To learn
more about Dynotech driveshaft products and services, visit
www.dynotechengineering.com. |
| UNI
FRS-960 Filters Available Through Hoffman Performance Products |
| The
UNI FRS-960 filter through Hoffman
Performance Products
protects engines and enhances flow into the motor. Racers
can pick up 1 mph in the 1/8 mile and 2-3 mph in the 1/4 with
maximum filtration to protect their engines.
|
 |
| Through
extensive research and development UNI found that by installing
a honeycomb grill it effectively enhances the volume of air
and increased air speed through the filter, and the curved
bell on the carburetor base has been designed to enhance airflow
into the carburetor. The dimensions of the FRS-960 are 16”
long x 10 ½” wide x 4 ½” tall. The
opening for the carb is 7 ¼” and fits the Dominator
series carburetor. As a bonus each UNI FRS-960 air filter
comes with a 4 oz aerosol bottle of spray oil at no charge
that is specially designed by UNI to oil the filter. Free
shipping in the lower 48 states; international orders please
contact Hoffman Performance Products for
shipping costs. Visit www.HoffPro.com
for more information. |
| You're
My Density: Computech Sponsors NHRA & IHRA Contingency |
Computech
is an NHRA and IHRA contingency sponsor for the RaceAir
Pro™ and RaceAir Remote Trailer

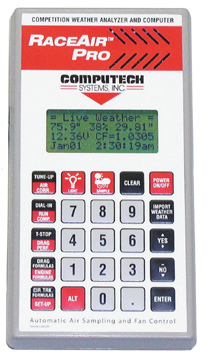

based weather stations for 2011. The
RaceAir Pro handheld digital weather station
incorporates all the great features from our track proven
RaceAir™, such as automatic air sampling, an internal
fan, and precision digital sensors for consistent air readings,
plus programs for Drag Racing. Programs include 2 Dial-In
programs, Throttle-Stop prediction, run completer, tuning
programs plus many others.
The
RaceAir Remote is a trailer based systems
used by the pros, such as past Pro Stock World Champions
Mike Edwards and Warren Johnson. The RaceAir Remote can
be used with or without a pager.
Visit
the Computech web site at www.computechracing.com
for more information. |
| Custom
Driveshafts From Dynotech Engineering |
|
With
more than 80 years of balancing experience, Dynotech
Engineering has built custom steel, aluminum and
carbon fiber driveshafts for OEM support and replacement,
as well as for racing, muscle car, hot rod, four-wheel drive
and specialty applications. All Dynotech driveshafts are hand
assembled, computer welded and high-speed balanced to the
highest standards in the industry.
"Our custom driveshafts feature the industry's most sophisticated
engineering and building process carried out by our team of
highly skilled
technicians, which allows us to offer a vibration-free guarantee
that has led to our unofficial reputation as the 'industry
referee' on balancing," said Steve Raymond,
general manager, Dynotech Engineering Services. "And
because we provide balance verification and correction to
the OEMs - balancing each driveshaft to the most exacting
specifications - we can apply those techniques to all of our
custom-designed applications."
"Our years of experience and customer interaction give
us the ability to design and create the highest quality driveshafts
for a diverse array of applications, but to do so with competitive
pricing and on-time delivery," Raymond said. "For
example, Dynotech can replace most OEM driveshafts at a lower
cost than many local car dealers, and ship it in three days
or less."
To learn more about Dynotech driveshaft products and services,
visit www.dynotechengineering.com. |
ATI
Introduces Super F™ Transmission Fluid |
ATI
Performance Products has introduced a 100% synthetic
Type F fluid. ATI was never a believer in synthetic ATF because
it was not available with the additive named Type F. This
Friction Modifier Chemistry has not been blended into a full
synthetic ATF, until now. To achieve this, ATI teamed up with
Joe Gibbs Driven to produce the right fluid for consistent
crisp shifting, superior heat dissipation and amazing life
over standard petroleum based fluids. The
Super F fluid was tested for over a year
in the ATI Drag Pak Challenger, netting
a solid .02 faster than when raced back to back against
a popular non-synthetic Type F. The Super F fluid was also
run for the full 2010 race season in Chris Rini's
Pro Street Stratus, helping him take the NMCA championship
with record passes of 6.15 and 234 mph. For good measure
ATI also had Dave Hance abuse the product
in his record setting Drag Radial car as well as his ADRL
Pro Mod.
Super
F is available in four different sizes: quart bottle (#100001);
case of 12 bottles (#100001-12); gallon (#100004); case
of 4 gallons (#100004-4).
ATI
Performance Products, Inc. is a family-owned and
operated company producing quality race and performance
parts since 1961. For more
info call 800-284-3433
or visit www.atiracefluids.com.
|
| Lingenfelter
Adjustable Launch Controller |
Lingenfelter
Performance Engineering has introduced the LNC-002,
an adjustable RPM limiter for General Motors LS series
engines that provides consistent launch RPM off the line in
drag racing and standing-start road racing applications. The
LNC-002 also includes a Timing Retard function useful in turbocharged,
supercharged and nitrous applications.
"Our latest launch controller is a functional, plug-and-play
product designed specifically for today's racers," said
Ken Lingenfelter, owner, Lingenfelter Performance
Engineering. "The LNC-002 can be used as an adjustable,
individual cylinder RPM limiter that provides fast-acting,
spark-based engine RPM limit control. It also features a Timing
Retard function that can retard timing by up to 15 degrees.
The timing retard can be based off of manifold pressure for
turbocharged and supercharged applications or can be time-based
for nitrous oxide applications. It can also be used in combination
with the launch control function off the line in drag racing
to build additional boost in turbocharged applications."
Other product benefits include a 40-MHz 16-bit automotive-qualified
processor; dedicated timers on each coil drive circuit to
keep timing accurate over the full RPM range; independent
coil drives that provide Sequential Ignition Kill when RPM
limiting is active; active clamps and optical isolation to
suppress electrical noise; separate RPMx100, RPMx1000, Degrees
and Rate switches for easy adjustment; and an analog voltage
output wire to send timing retard information to data acquisition
systems.
The LNC-002 (part number L460095297) is designed for use on
all GM LS series engines - LS1, LS6, LS2, LS3, LS7, LQ4 and
other Gen III/IV GM V8 applications - as well as GM V8 engines
that use the same ignition coil system, including 1997-2010
Corvette (2009-2010 ZR1 Corvette requires custom wiring);
1998-2002 LS1 V8-equipped Camaro and Firebird; 2010-2011 Camaro
SS; 2004-2006 Pontiac GTO; 2004-2007 Cadillac CTS-V
* 1999-2010 GM CK trucks, Tahoe, Yukon, Escalade, H2, Sierra,
Silverado and Avalanche (with the 4.8L, 5.3L, 6.0L, 6.2L engines).
It will not work on 305 and 350 Vortec engines; 2003-2006
Chevrolet SSR; 2006-2008 Trailblazer SS and other S/T body
trucks with 4.8L, 5.3L and 6.0L Gen III engines. For more
information, visit www.lingenfelter.com. |
| Numidia
Dragway Opens Online Gift Shop |
Numidia
Dragway has opened a new online gift shop at www.shopnumidiadragway.com,
just in time for gift ideas and holiday shopping. Items include
apparel such as t-shirts, hoodies and jackets, as well as
gift certificates. |
| JEGS
Heavy Duty Air Rivet Gun |
JEGS
heavy duty air rivet gun in the familiar JEGS yellow
can be used with rivets as small as 3/32” or as large
as 3/16”. Works with steel or aluminum rivets.
The
average air consumption is 4 CFM and the operating air pressure
is 60-90 PSI. Includes wrenches, air fitting and four nosepieces
for 3/32", 1/8", 5/32" and 3/16" rivets.
555-80421
– JEGS Air Rivet Gun
More
information on this product is available at JEGS'
website HERE. |

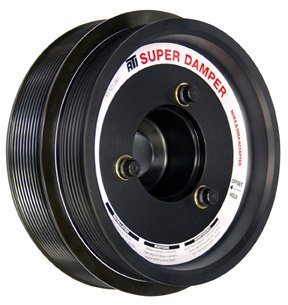

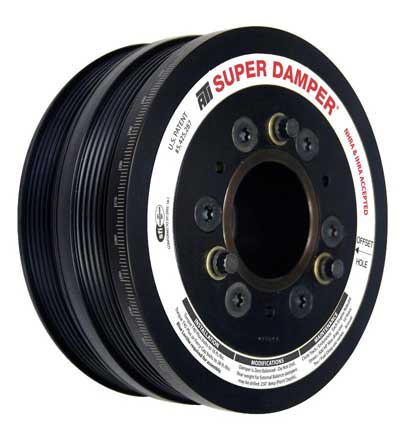

| ATI
Super Dampers for the 2008+ Evolution X |
ATI
Performance Products, Inc. introduces their Super
Damper for the 2008+ Evo X with the newly released 2.0L
turbocharged engine. The Evo X damper is offered in a 3%
under drive (p/n 918253) for improved dampening and increased
power. Unlike unbalanced underdrive pulleys, which offer
no protection to high performance engines, the ATI Super
Damper provides balanced dampening of torsional crankshaft
vibrations. The 3 external bolts allow for the mounting
of A.R.E.'s dry sump mandrel to the damper (A.R.E. p/n 2750B).The
ATI damper comes with 360º laser-etched timing marks
and exceeds SFI 18.1 Safety Certification.
ATI
Performance Products, Inc. is a family-owned
and operated company producing quality race and performance
parts since 1961. For more
info call
800-284-3433 or
visit www.atiracing.com.
|
| Use

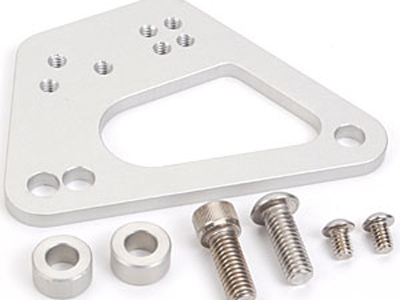

Your Head With JEGS Regulator Brackets |
| JEGS
Billet Aluminum Cylinder Head Mount Fuel Pressure Regulator
Brackets answer the question of where do I want to
mount it? Available for the most common cylinder heads and
fits JEGS, Aeromotive, BG, Holley ® and Quick Fuel regulators.
The CNC machined 6061 billet aluminum bracket features a clear
anodize finish and stainless steel mounting hardware. Made
in USA. 555-159105
– Head Mount Regulator Bracket – SBC
and SB-Ford; 555-159106
– Head Mount Regulator Bracket – BBC
More
information on this product is available at JEGS'
website HERE. |
 |

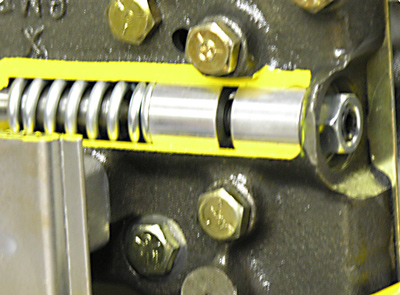

| ATI’s
Patented Adjustable Pressure Regulator |
| |
ATI
Performance Products, Inc. is proud to announce that
the ATI Adjustable Pressure Regulator is
now a patented product (US Patent #7780564). The
adjustable regulator is a standard option in both ATI's
external Compu-Flow® transbrake and manual valve bodies
for the Powerglide. The sometime troublesome OEM boost valve
has been eliminated and replaced with a pre-load adjuster.
This is used in conjunction with a stronger than stock pressure
spring. Resulting in a valve body that can be adjusted from
165 to 250 psi without being disassembled. |
| Pressure
can now be adjusted with a wrench and a hex key to suit your
horsepower application. ATI
Performance Products, located in Baltimore MD,
specializes in producing high performance products for street
and strip applications. For more information call 800-284-3433
or visit www.atiracing.com.
|

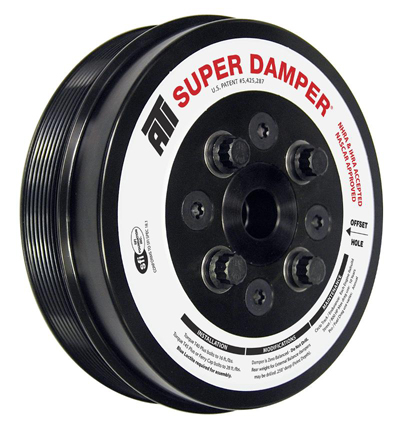

| ATI
Super Damper® for 8.3L Cummins |
ATI
Performance Products introduces their Super Damper
for Cummins 8.3L ISC diesel engines. ATI P/N 917372 is made
to be a direct replacement for the stock 8.3L damper found
commonly in pusher style motor homes and service trucks.
Cummins calls for the stock damper to be replaced every
50,000 miles; replacing with the ATI Super Damper will allow
for a much longer service interval and easy rebuilding when
needed, not replacing. The Super Damper provides dampening
of torsional crankshaft vibrations through all RPM ranges.
This damper comes with laser-etched timing marks and exceeds
SFI 18.1 Safety Certification.
ATI
Performance Products, located in Baltimore MD,
specializes in producing high performance products for street
and strip applications. For more information call 800-284-3433
or visit www.atiracing.com.
|
 |
| Re-Mount
Your Mustang, Mark Your Spot With JEGS |
| JEGS
1979-04 Mustang Aftermarket Seat Mount bolts directly
to your stock floor making the installation of a lightweight
polyethylene or aluminum seat less-complicated. If your Mustang
is equipped with a roll bar/cage JEGS recommends Seat Back
Support Brace 550-40485 or 550-40487 for a poly seat and 550-40486
for an aluminum seat. 555-70223
– Steel Seat Mount – 1979-2004 Ford Mustang
More information on this product is available at JEGS'
website HERE.
|
 |
|
JEGS
Easy View Spark Plug Indexing Sockets allow you to
view the indexing mark on your spark plug to insure it is
installed with the electrode in the proper location for maximum
power. Can be used with JEGS 555-40355 and 555-40356 to properly
index your plugs. For use with a 3/8" ratchet and available
for 5/8" and 13/16" plugs. 555-805010
– Easy View Spark Plug Socket – 5/8”
555-805011 – Easy View Spark Plug Socket – 13/16”
More information on this product is available at JEGS'
website HERE. |
| Starting
Drag Paks Not A Challenge Thanks To ATI |
ATI
Performance Products, Inc. introduces the ATI-modified
Tilton Super Starter (ATI P/N 915536) for use with
the Mopar Drag Pak Challenger and a 904 transmission. This
starter has a billet nose adapter custom machined by ATI
and adapted to the Tilton Super Starter.
The
high-torque starter is made to work with the 904 transmissions
that are commonly used in the Drag Pak Challenger. The Super
Starter is manufactured with a 3hp motor and is capable
of handling 12v or 16v power systems. The ATI-machined adapter
allows for proper clearance to your ring gear and positions
the starter to clear the manual steering shaft. The Tilton
Super Starter with ATI-machined adapter comes with all necessary
hardware for installation.
ATI Performance Products, Inc. is a family-owned
and operated company producing quality race and performance
parts since 1961. For more
info call 800-284-3433
or visit www.atiracing.com. |
| ATI
Introduces SuperPlate® Flexplates |
Keeping
with their tradition of staying ahead of rampant increases
in horsepower that is commonplace in the performance industry
today, ATI Performance Products has developed
the Superplate flexplate. Superplates are
manufactured from a super-strong material with a 90,000 lb.
tensile strength and 80,000 lb. yield strength to withstand
thousands of cycles. Superplates are laser machined to avoid
the heat and stress stamping inflicts on them. The crank bolt
holes are bored in position to exacting tolerances in both
size and location on CNC machines. The Superplate uses the
"grip length" of the 6 or 8 crank bolts as dowels
to prevent the plate from moving under high torque conditions.
Unlike "billet plates" that violate the "flex
principle" of a flexplate, the Superplate flexes the
way OEM plates are designed to do, absorbing the numerous
machining tolerances that exist in our "non exact"
world. ATI Superplates are neutral balanced
for use in internally-balanced engines and exceed SFI 29.1
& 29.2 ratings. Log
on to www.atiracing.com
or call (800) 284-3433 to speak with a sales technician
today to find more information on Superplate flexplates
including all available applications, part numbers, accessories,
and prices. |
|
| I
Want My MTTV: Mickey Thompson Launches Online
Video Site |
Mickey
Thompson Performance Tires & Wheels (Stow,
OH) has launched an online video site called MickeyThompsonTV.com.
This online video player is stocked with a variety of video
content on Mickey Thompson strip, truck, motorcycle, off-road,
and Bonneville racing that will include recent video as
well as some vintage Mickey Thompson video footage. Video
will also include product information, company news, event
coverage and more.
“We
are very excited to introduce a customized online video
player to the friends and fans of Mickey Thompson”,
said Ken Warner, Mickey Thompson Performance
Tires & Wheels. “This new site has been designed
and developed with the input we have received from the loyal
Mickey Thompson fans and racers from around the country.
We are very excited to provide a place where race fans,
racers, vehicle builders, staff, dealers, installers, friends
and family can connect online and develop a unique Mickey
Thompson community. We are looking forward to bringing some
really great stuff to our members that they won’t
be able to find anywhere else. It will be a lot like having
the Mickey Thompson version of YouTube!”
Any video on MickeyThompsonTV.com can be
viewed, selected, and then embedded into other web pages,
forums or blogs so the video can be shared. Mickey Thompson
enthusiasts and fans will also be able to upload their own
video content. Members will have the ability to share comments,
and participate in related forums, and will also be able
to access Mickey Thompson product information, company news,
apparel and much more. MickeyThompsonTV.com has been developed
for use with Adobe Flash Player 8 or above, and has been
optimized for multiple browser platforms making it accessible
for the PC and Macintosh user. To get Adobe Flash Player,
visit www.adobe.com/products/flashplayer.
MickeyThompsonTV/com can be seen by visiting www.mickeythompsontv.com.
|
FOR
INFORMATION ABOUT SUBMITTING, CLICK HERE |
 |
 |
 |
|
|
 |
